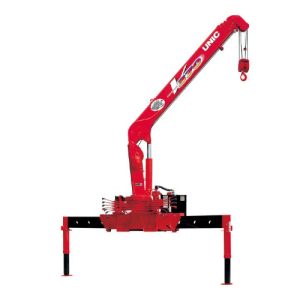

TRUCK MOUNTED CRANES-URV340



Max. Lifting CapacityMax. Out ReachMax. Recommended Tucks
3.03 t at 2.4 to 2.7 m5.32 to 14.42 mGVW 8 to 15 t



View Brochure

Category:

Description

SPECIFICATIONS
ModelUR-V342UR-V343UR-V344UR-V345UR-V346
Maximum Lifting Capacity3030kg at 2.7m3030kg at 2.6m3030kg at 2.6m3030kg at 2.4m3030kg at 2.4m
Maximum Hook HeightMax. 7.0mMax. 9.2mMax. 11.4mMax. 13.7mMax. 15.9m
Maximum Working RadiusMin. 0.65m to Max. 5.32mMin. 0.65m to Max. 7.51mMin. 0.67m to Max. 9.81mMin. 0.71m to Max. 12.11mMin. 0.73m to Max. 14.42m
Boom LengthMin. 3.27m to Max. 5.51mMin. 3.31m to Max. 7.70mMin. 3.41m to Max. 10.00mMin. 3.54m to Max. 12.30mMin. 3.63m to Max. 14.61m
Boom Sections23456
Boom Raising AngleMin. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊
Slewing Angle (Continuous)360 ̊360 ̊360 ̊360 ̊360 ̊
