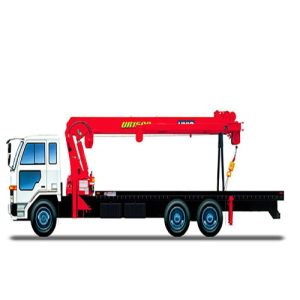

TRUCK MOUNTED CRANES-URV550K-TH



Max. Lifting CapacityMax. Out ReachMax. Recommended Tucks
3.03 t at 2.4 to 2.7 m5.32 to 14.42 mGVW 8 to 15 t



View Brochure

Category:

Description

SPECIFICATIONS
ModelUR-V553KUR-V554KUR-V555KUR-V556K
Maximum Lifting Capacity5050kg at 2.5m5050kg at 2.5m5050kg at 2.5m5050kg at 2.5m
Maximum Hook HeightMax. 10.2mMax. 12.7mMax. 15.1mMax. 17.3m
Maximum Working RadiusMin. 0.69m to Max. 8.13mMin. 0.70m to Max. 10.63mMin. 0.74m to Max. 13.14mMin. 0.77m to Max. 15.50m
Boom LengthMin. 3.54m to Max. 8.37mMin. 3.60m to Max. 10.87mMin. 3.78m to Max. 13.38mMin. 3.96m to Max. 15.74m
Boom Sections3456
Boom Raising AngleMin. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊Min. 1 ̊ to Max. 78 ̊
Slewing Angle (Continuous)360 ̊360 ̊360 ̊360 ̊
